Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems

Nanjing Shinewave Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems

  • 1
  • 2
  • 3

Brand Name : SWT

Model Number : SW-PA-20006000-33C

Place of Origin : China

MOQ : 1pcs

Price : 850-900USD/pcs

Payment Terms : T/T, D/P, D/A, L/C, Western Union

Supply Ability : 100pcs/Month

Delivery Time : 5-8 working days

Packaging Details : Standard Packing

Name : RF Power Amplifier

Operating Frequency : 2000~6000MHz

RF INPUT : 0dBm

Power Gain : 33dB

P-sat Power Output : 33dBm

Power Gain Flatness : ±2dB

Operating Voltage : 28VDC

Operating Temp. : 0~50°C

Application : Communication, Broadcasting, and Radar

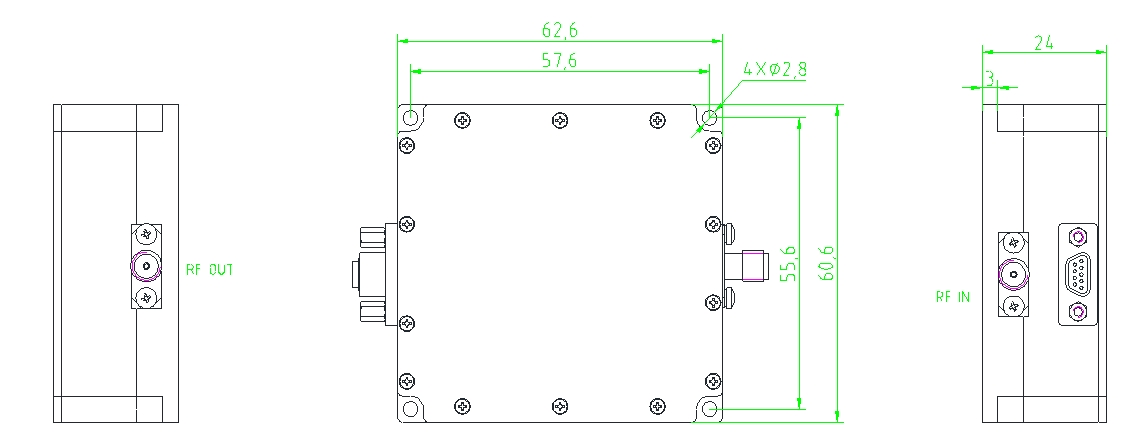

Dimensions (L x W x  H) : 62.6*60.6*24mm

Contact Now

Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems
Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems
Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems
RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 2000   6000 MHz
RF INPUT   0   dBm
P-1dB Power Output 33     dBm
Power Gain 33     dB
Power Gain Flatness   ±2 ±3 dB
Input VSWR     2
Operating Voltage   28   VDC
In-Out impedance   50
Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems


Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems


Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems

Company Profile


Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.

Showroom

Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems
Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems

Participation in exhibitions


Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems

Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems


Why choose us

Staffing
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.


TECHNICAL SUPPORT
Fast Response
Provide Project Technical AdviceTo Provide Customers With Quality Pre-Sales/Post-Sales Service


PRODUCT SUPPLY
Full Spectrum Products Available
Customer Needs As A Guide
To Provide Customers With Customized Products And Solutions


PRODUCT QUALITY
All Have Passed Various Performance Tests Before DeliveryTo Ensure That The Product is Good And Stable During Use
Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems


Certifications

Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems

Customized 2000-6000MHz 2W Ultra-Broadband RF Power Amplifier for Wireless Communication, Radar Systems



FAQ

1. Our Advantages
Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.

2. About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.

3. About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped.

4. How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics.
3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.

5. Delivery Method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight.

6.Payment Method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank.
